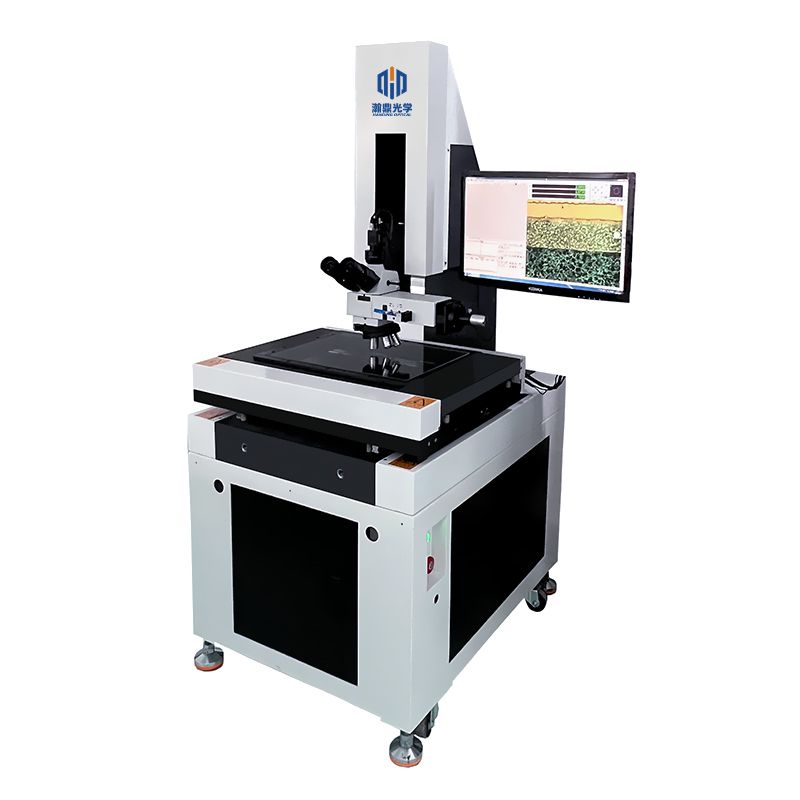

Automatic Measurement Software (CNC Multifunctional Imaging Measurement Software)

Complete CNC functionality, with automatic focusing, automatic magnification switching, and automatic light source control capabilities.

Comprehensive geometric measurement capabilities (multi-point measurement, lines, circles, arcs, rectangles, slots, etc., enhancing measurement accuracy).

Automatic edge detection and scanning feature, fast, accurate, and repeatable, complemented by a suite of powerful imaging measurement tools to simplify the measurement process, making it more relaxed and efficient.

Supports robust measurement functions, convenient graphic construction features, allowing users to simply select graphics to construct points, lines, circles, arcs, rectangles, slots, distances, intersections, midpoints, verticals, parallels, and widths, autofocus, and automatic contour two-dimensional scanning, etc.

Measurement elements can be translated, copied, rotated, arrayed, and projected, reducing the time required for programming when dealing with a large quantities of measurements.

Measurement data can be stored as SIF files, allowing different batches of objects to be measured with the same position and method each time, avoiding variations in results between different users at different times.

For complex workpieces, DXF, EXCEL files (optional) can be directly loaded, quickly converted into automatic measurement programs, saving time that would be spent on manual teaching. Multiple DXF files can be loaded into the system at the same time, and the height of each DXF file on the Z-axis can be set.

SI CAD can be used for offline program editing.

For repetitive workpieces, it has the function of automatic programming, the measurement process is automatically programmed, which can quickly and accurately measure, significantly reducing the on-site measurement time and making batch measurement of the same workpiece more convenient and efficient.

After automatic programming, reports can be output in your own format, and automatically saved to the disk.

After automatic programming, the measurement failure or out-of-tolerance elements can be re-measured individually.

After automatic programming, the measurement count can be automatically accumulated.

Diverse coordinate system setting methods, including coordinate translation, coordinate rotation, redefining new coordinate systems, modifying coordinate origins and coordinate correction, making measurement more convenient.

Automatic curve scanning measurement function, which can quickly calculate the area and perimeter of curves.

Multiple SI files can be loaded into the system at the same time.

Calculator functions can find maximum, minimum, average, sum, range, and failure elements, and NG elements.

3D view and work platform view switching functions.

Image area can be output as jpeg format files.

Rapid element marking function, allowing users to quickly find measurement elements when dealing with a large number of elements.

Batch element processing, selecting the required elements, quickly executing program teaching, resetting, combining elements, and exporting data with multiple functions.

Physical shooting function, which can take a full picture of the workpiece, enriching the annotation functions, and allowing for all two-dimensional geometric dimension and positional differences to be marked in the actual and virtual images, maximizing communication efficiency.

Diverse display modes: language switch (Simplified Chinese and Traditional Chinese, English, Korean, Italian, Japanese, German, French, etc.), unit switch (mm/inch), angle conversion (degrees/minutes/seconds), display number of decimal places can be set, coordinate system switch, etc...

Seamless connection with EXCEL, measurement data can be printed with text and data details, and previews, data reports can be printed and exported to Excel for statistical analysis, and can be exported according to corresponding report formats according to customer requirements.

Reverse engineering functions and CAD operations, enabling software and AutoCAD drawings to be converted, and directly identifying errors between the workpiece and engineering drawings.

Drawing area can be zoomed in, zoomed out, panned, and zoomed all functions. It has full view and magnification functions, regardless of the pixel size, everything can be seen clearly.

Drawing area can be personalized edited: points, lines, circles, arcs, deletions, cuts, extensions, chamfering, circle center points, two lines and radii deletions, cuts, extensions, UNDO/REDO, and can directly make size annotations and simple CAD drawing functions in the full view area.

Humanized file management, measurement data can be stored in SI, SIF, SXF formats or saved as dx files, measurement results can be imported into professional CAD software for development.

The software includes a built-in data sorting function, which can quickly organize measurement data, making report organization easier, and can automatically read the specified measurement data during the measurement process, and calculate maximum, minimum, average values, and statistical coefficients.

Can be used within the software, define the output format of graphic elements (such as circle center coordinates, distances, radii, etc.)

LED intelligent ring light surface cold light source and LED intelligent contour cold light system, completely bidding farewell to the traditional spiral light system, through full software control of brightness, making measurement more perfect, with zoning functions that can be freely changed light angles.

Equipment Operating Environment

1. Temperature and Humidity:

- Temperature: 20－25℃, Optimal: 22℃; Relative Humidity: 50％－60％, Optimal: 55％; Maximum temperature change rate: 10℃/hour; In northern regions with dry climate, a humidifier is recommended; In southern regions with humid climate, a dehumidifier is recommended.

2. Heat Calculation for the Workshop:

- Maintain the operating environment of the equipment at the optimal temperature and humidity. It is necessary to calculate the total heat dissipation in the room, including the heat dissipation of indoor equipment and instruments (the heat dissipation of general lighting can be ignored).

- Human heat dissipation: 600BT/hour/person

- Workshop heat dissipation: 5 BTU/square meter

- Equipment space (L*W*H): 2200mm x 2200mm x 2000mm

3. Airborne Dust:

The machine room should be kept clean, with no more than 45000 particles of 0.5MLXPOV per cubic foot in the air. If there is too much dust, it can easily cause read/write errors and damage to the disk drive and read/write head.

4. Workshop Vibration:

The vibration in the machine room should not exceed 0.5T. Vibration machines should not be placed together, as vibration can cause the mechanical parts and connectors of the equipment to loosen, leading to abnormal machine operation.
