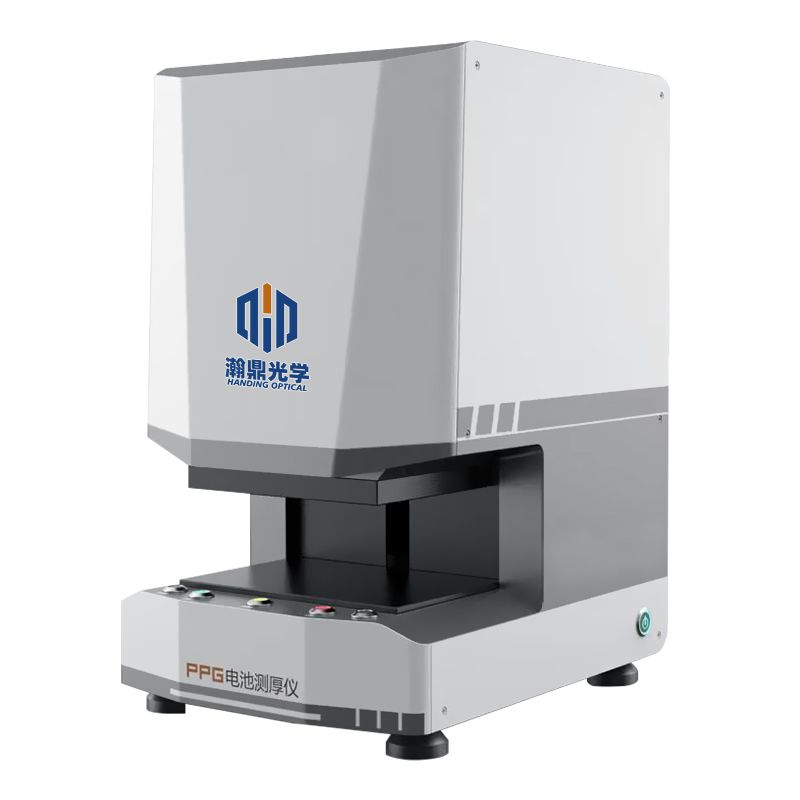

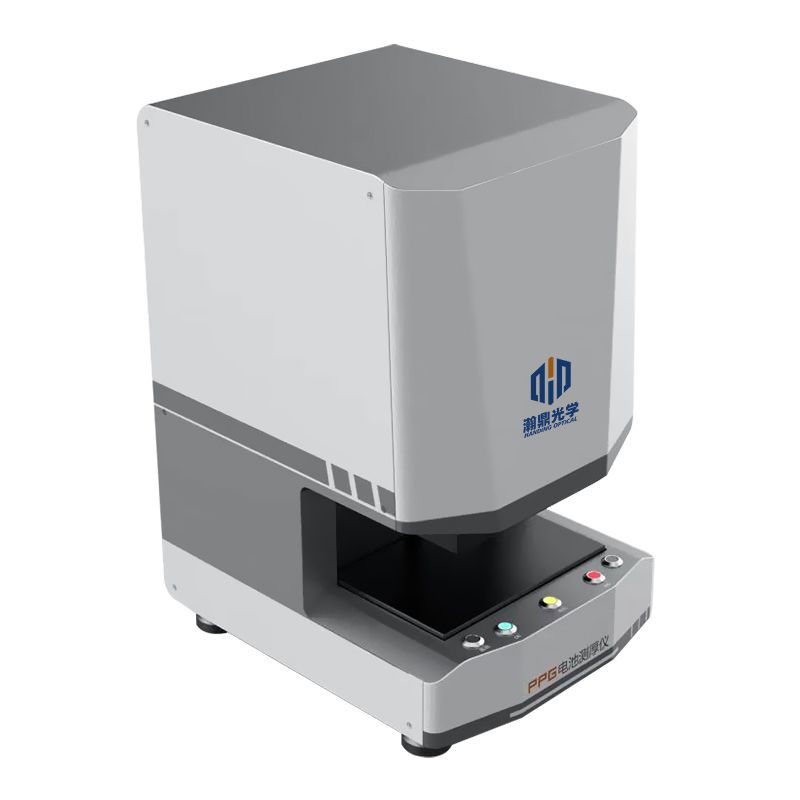

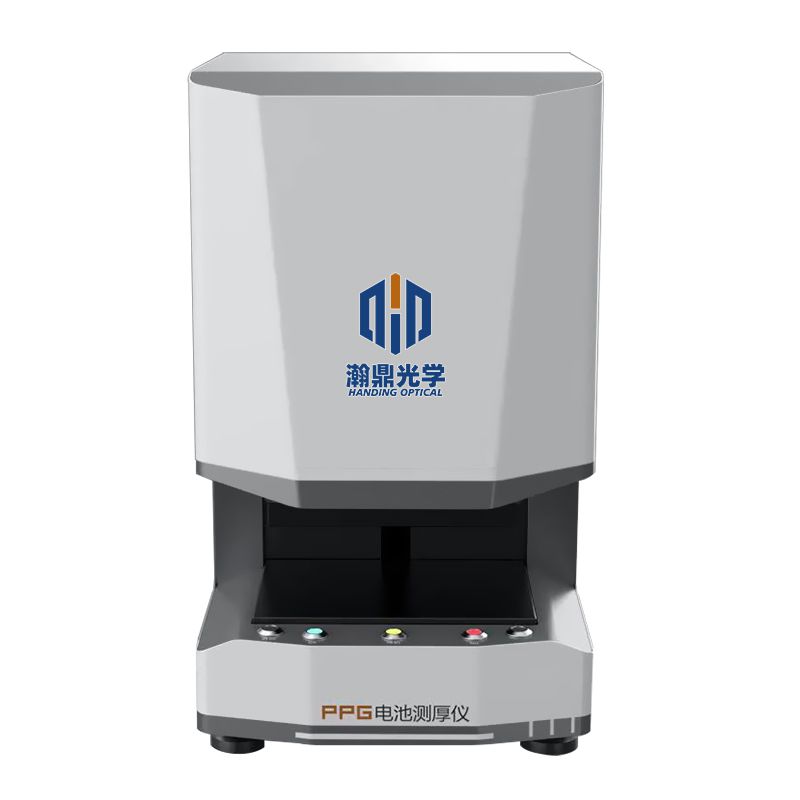

Equipment Introduction

This equipment is suitable for measuring the thickness of soft package batteries and battery cores. It can also inspect various non-battery flexible sheet products. Using a weight matching system, it features simple operation, stable output pressure, and precise measurement.

Equipment Operation Steps

1. Place the battery on the thickness testing platform and set the force value;
2. Press the start button, and the testing plate will apply pressure for the test;
3. After the test is completed, the testing plate will rise;
4. Remove the battery, and the entire process is complete, ready for the next test.


Main Components of the Equipment

1. Measurement Sensors: Optical Transmission

2. Programmable Controllers: Self-developed

3. Machine Body: Surface Coated with Paint

4. Machine Parts Materials: Aluminum, Steel, Grade 00 Jinan Green Marble

5. Machine Safety Cover: Metal Parts

Basic Requirements and Main Component Specifications for the Equipment

1. Equipment Appearance Colors: White, Black;

2. Operating Environment: Temperature 23±2℃, Humidity 40-70%, Vibration <15Hz;


Installation and Training Requirements

The buyer prepares the relevant power supply and waits at the installation site;
