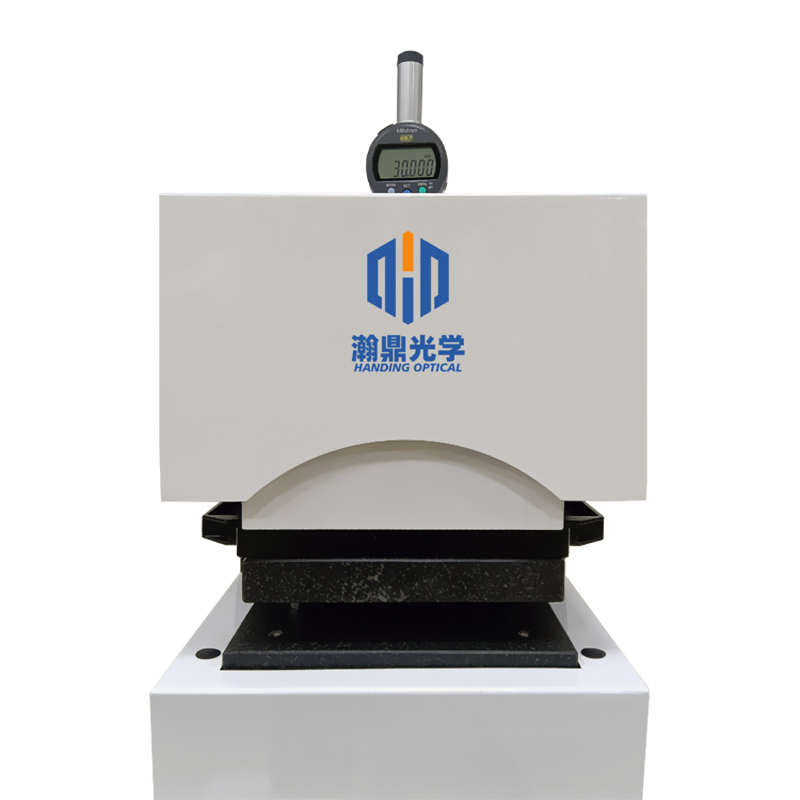

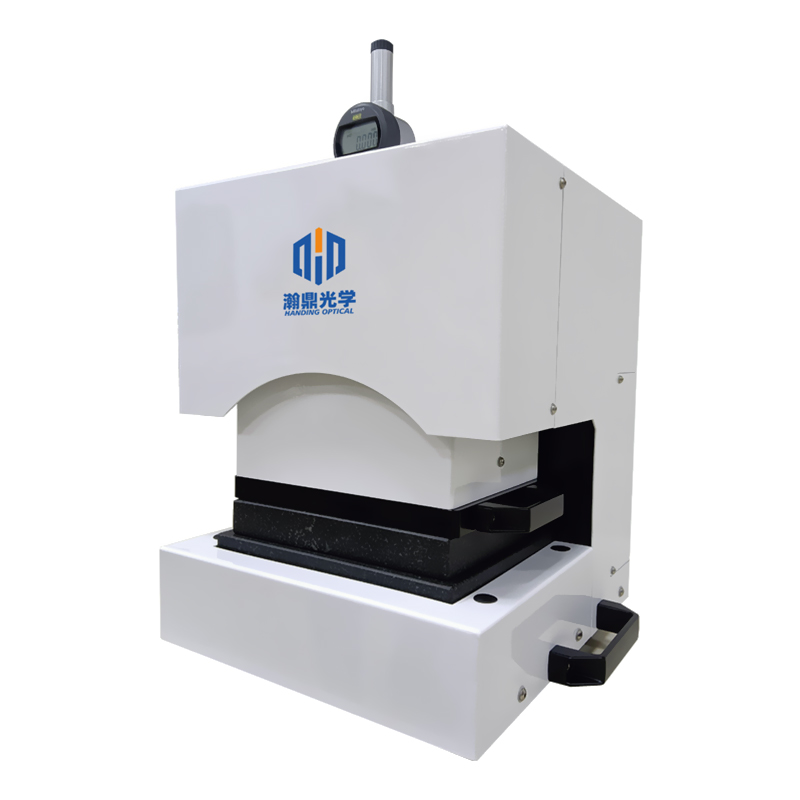

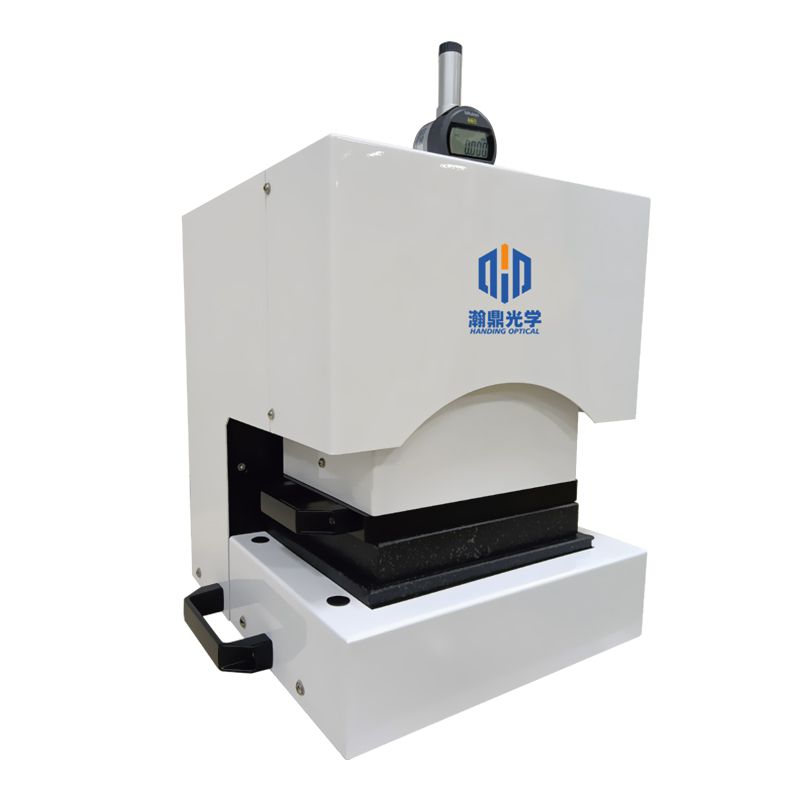

Equipment Introduction

This equipment is suitable for measuring the thickness of soft-packaged batteries and battery cores. It can also inspect various non-battery flexible sheet products. Using a weight-matching pressure adjustment method, it better ensures the stability of the test pressure and accuracy.

Equipment Operation Steps

1. Manually place the battery on the thickness testing platform;
2. Lift the testing plate to apply pressure naturally;
3. After the test is completed, lift the testing plate;
4. Manually remove the battery, and the entire process is complete, ready for the next test.

Main Components of the Equipment

1. Measurement Sensors: Digital Display

2. Data Display: Mitutoyo Thousandth Display

3. Machine Body: Surface Coated with Paint

4. Machine Parts Materials: Steel, Grade 00 Jinan Green Marble

5. Machine Safety Cover: Metal Parts


Equipment Operating Environment Requirements

1. Temperature: 23±2℃, Humidity: 40-70%;
2. Vibration: <15Hz;
