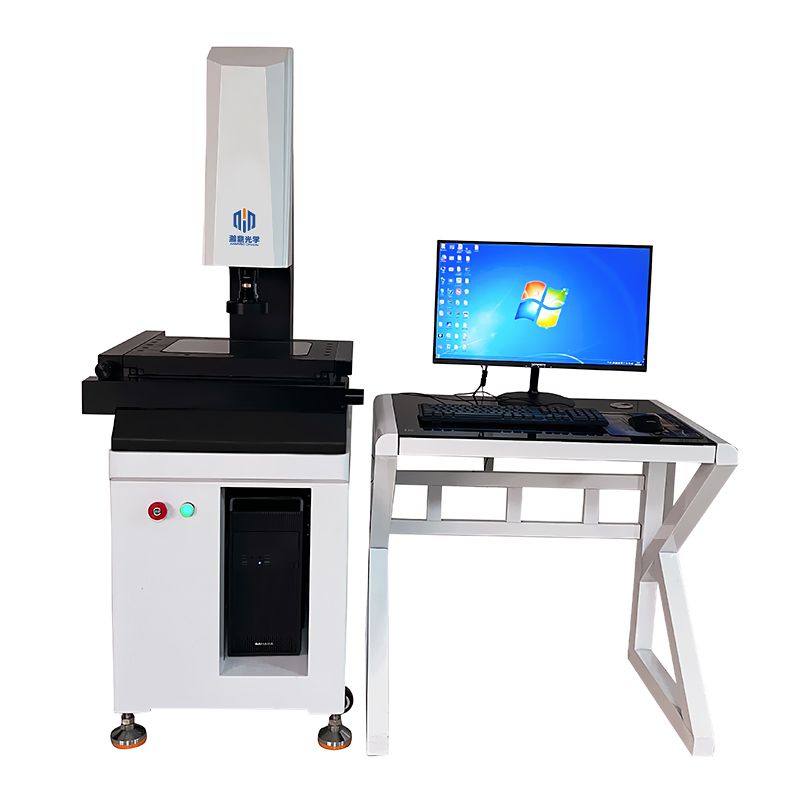

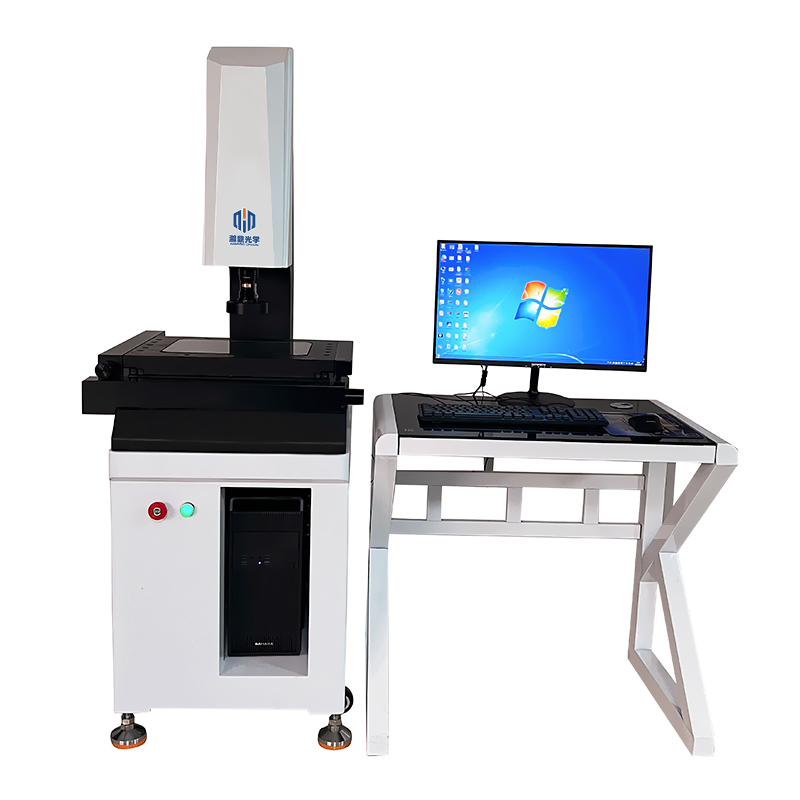

Instrument Features
- The entire machine base, column, and X/Y platform are made of natural marble, which never deforms, offers high precision, and strong stability;
- Brand new streamlined design, with a clean, intuitive, and generous appearance;
- Equipped with a fully closed-loop servo control technology, ensuring smooth operation, low noise, and fast speed;
- The bottom light and surface light use adjustable LED cold light sources, enabling precise measurement of various complex surface workpieces, avoiding the thermal expansion and contraction issues caused by general heat sources, preventing secondary deformation of the workpiece, with better imaging effects from the 3-ring 8-zone light source;
- Uses American TEO high-definition color CCD for excellent imaging quality;
- Equipped with high-definition fixed position continuous zoom lenses, no need for magnification calibration, optical magnification 0.7-4.5 times, image magnification 30X--200X (optional automatic zoom lenses available);
- The Z-axis uses a parallel guide rail structure with a counterweight design, reducing its weight, improving structural stability, minimizing its own deformation, and enhancing the positioning accuracy and stability of the Z-axis;
- Optionally equipped with Japan KEYENCE laser systems and UK RENISHAW probing systems, combined with software for large range and high precision 3D measurements;
- Globally unique Z-axis "zero gap technology" ensures that planar accuracy is unaffected by different focal distances;
- Measurement software: Uses the company's self-developed powerful 3D measurement software, which allows for quick and convenient precise measurement of various workpieces, providing users with a comprehensive measurement solution;
- Automatic program measurement, autofocus, auto edge detection, and automatic program-controlled lighting reduce manual intervention.

Software Features
1. Perfectly supports Windows 7/10/11 operating systems.

2. The most comprehensive geometric measurement capabilities.

3. Powerful construction features.

4. Strong edge capture capabilities for both rough and faint edges.

5. A complete tolerance evaluation system.

6. Dimension annotation and panoramic product image annotation.

7. Simple and practical reporting functionality.

The ability to output reports in various formats such as WORD, EXCEL, TXT, DXF, etc.

8. Full view scanning of the workpiece with GPS navigation for quickly locating the measurement points.

9. Perfect 3D measurement support, capable of supporting both contact probes and lasers simultaneously.
   - The graphics are displayed and operated in 3D, making them more intuitive.
   - Supports image-based point measurement of 3D elements.
   - Element data is displayed in three dimensions.

10. Powerful CAD import and export capabilities:
   - Can simultaneously import 100,000 elements;
   - Simplifies the process of DXF import programming;
   - Allows modification of CAD default settings;
   - Can export IGES files;
   - Supports Gerber file import for measurement, reducing the programming workload for PCB board measurements;
   - Can import curves for measurement.

11. Practical and powerful programming features:
   1. Supports programming on one machine for use on multiple machines;
   2. Supports re-measurement of elements, with associated constructions, geometric calculations, and tolerance evaluations automatically updating, making the process simple, time-saving, and efficient;
   3. Allows for quick modifications to program settings such as lighting, magnification, and height;
   4. Program array, translation, and rotation: For measurements of regular elements, only one needs to be measured, and the rest can be completed through array, translation, and rotation, saving time and increasing efficiency;
   5. Elements within the same screen can be measured automatically in one go without the machine moving;
   6. Can automatically determine the NG/OK status of the product and color-code the positions where measurements exceed tolerances.

12. Reverse Engineering:
   - The powerful scanning capabilities combined with CAD support functions make reverse engineering more feasible. Simply by providing a starting point and an endpoint, the system can automatically perform contour scanning.
