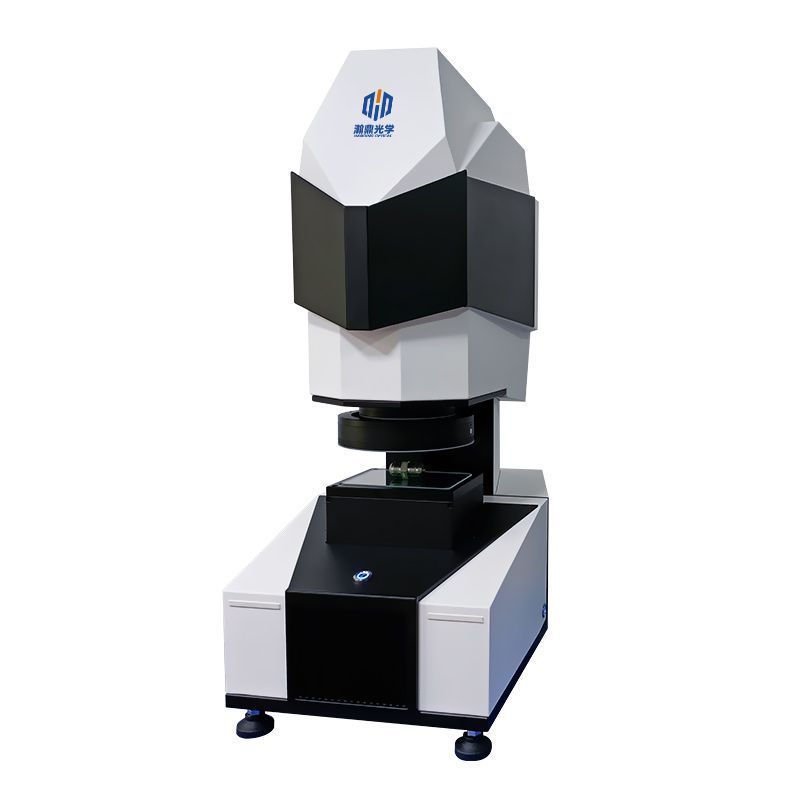

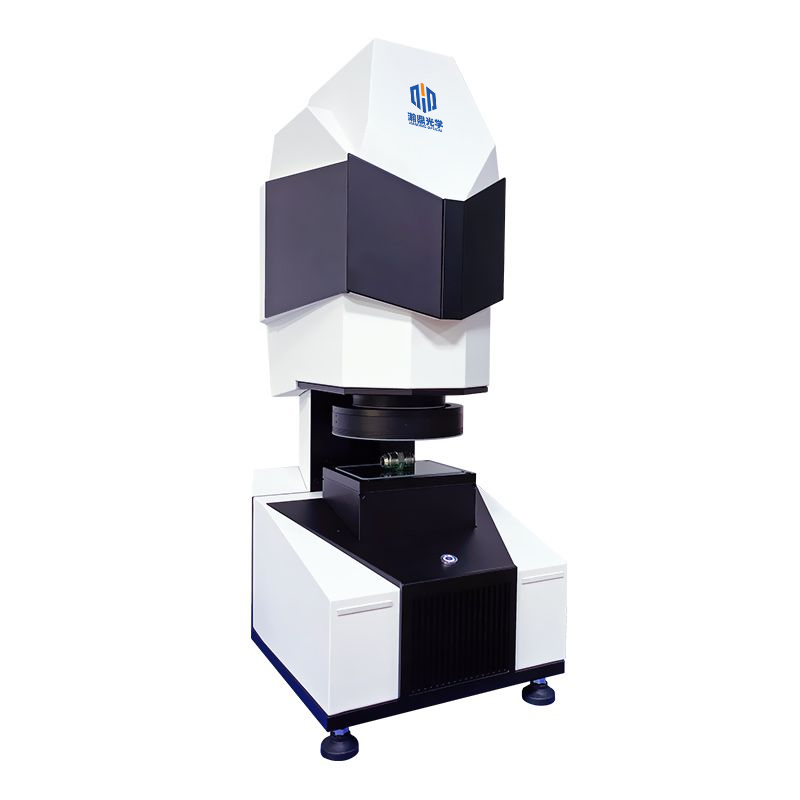

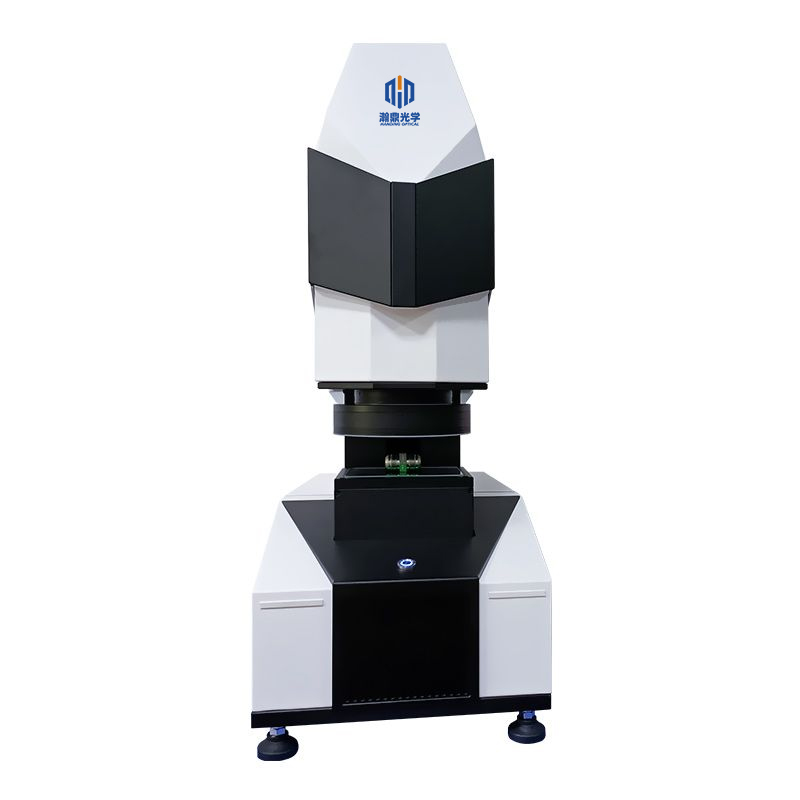

20-Megapixel Ultra-Clear Industrial Digital Camera
Equipped with Double Telecentric Lenses, Customizable Field of View Available Upon Customer Request
Capable of Simultaneously Measuring Individual or Multiple Products, No Need to Switch Measurement Programs When Changing Products
The website only displays some products, more products can be inquired about. Accurately recommend products based on your needs and support customization!
| Model | HD-4235D | HD-9060D | HD-1813D |
| Camera | 20-Megapixel Ultra-Clear Industrial Digital Camera(Optional 65-megapixel ultra-clear camera.) | ||
| Lens | Double Telecentric Lens | ||
| Light Source System | Standard: Telecentric Parallel Bottom Light + Surface Ring Light, Optional: Coaxial Light + Lift Ring Light (0°/45°) | ||
| Z-Axis Range | 45mm | 55mm | 100mm |
| Stage Load | 15KG | ||
| Field of View | 42×35mm | 90×60mm | 180×130mm |
| Repeatability Accuracy | ±1.5μm | ±2μm | ±5μm |
| Measurement Accuracy | ±3μm | ±5μm | ±8μm |
| Measurement Software | FMES-V2.0 | ||
| Measurement Mode |
Capable of measuring single or multiple samples simultaneously, no need to switch measurement programs when measuring different products |
||
| Measurement Speed | 1-3S/100 Dimensions | ||
| Power Supply | AC220V/50Hz, 200W | ||
| Operating Environment |
Temperature: 22°C±3°C Humidity: 50～70% Vibration: <0.002mm/s, <15Hz |
||
| Weight | 35KG | 40KG | 100KG |
| Warranty | 12 Months | ||
Han Ding offers a one-stop service from needs analysis, product solutions, usage guidance, to after-sales tracking
