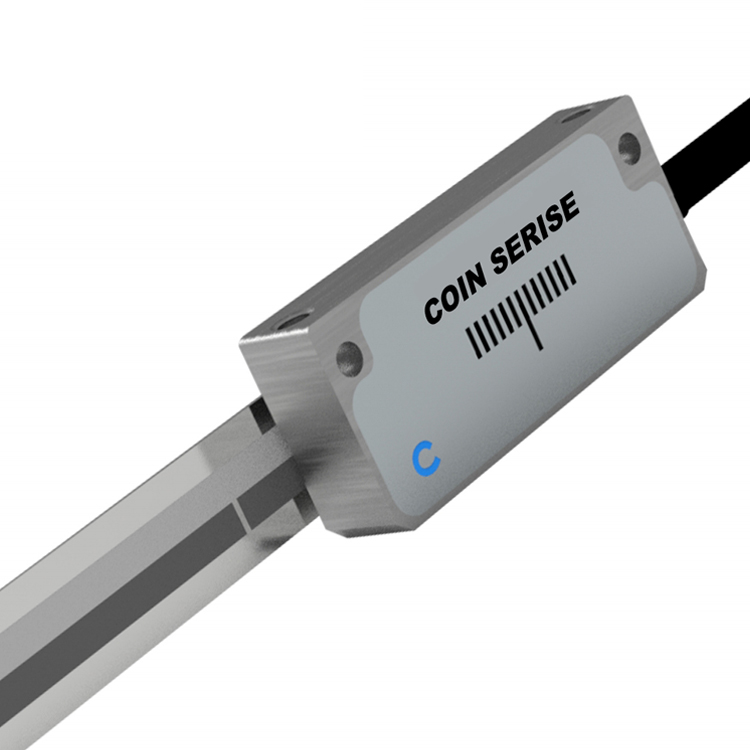

Technical characteristics and advantages

1. High precision optical zero position: The reading head integrates optical zero position and has bidirectional zero return repeatability.

2. Internal subdivision function: Integrated subdivision function, no external subdivision box required, saving space.

3. High dynamic performance: Supports a maximum speed of 8m/s.

4. Automatic adjustment function: including automatic gain control (AGC), automatic bias compensation (AOC), and automatic balance control (ABC), ensuring signal stability and low subdivision error.

5. Large installation tolerance: The installation tolerance of ± 0.08mm reduces the difficulty of use.

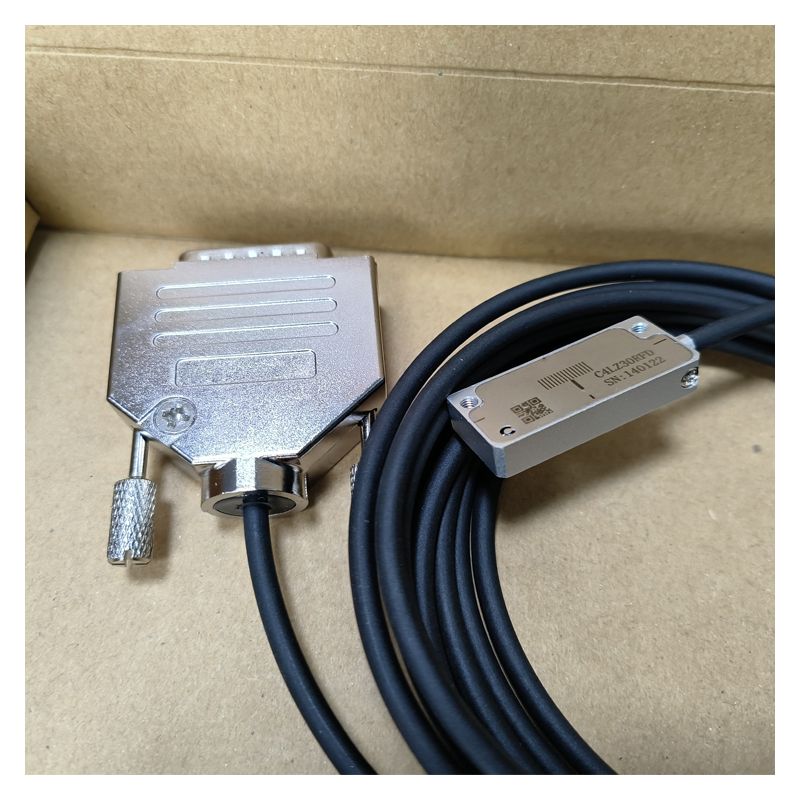

Electrical connection

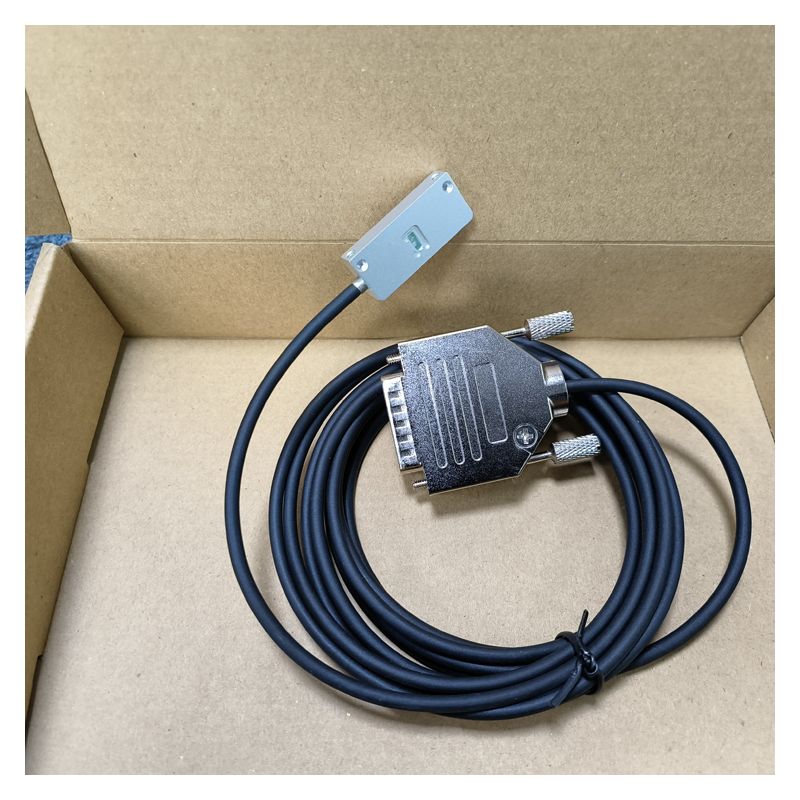

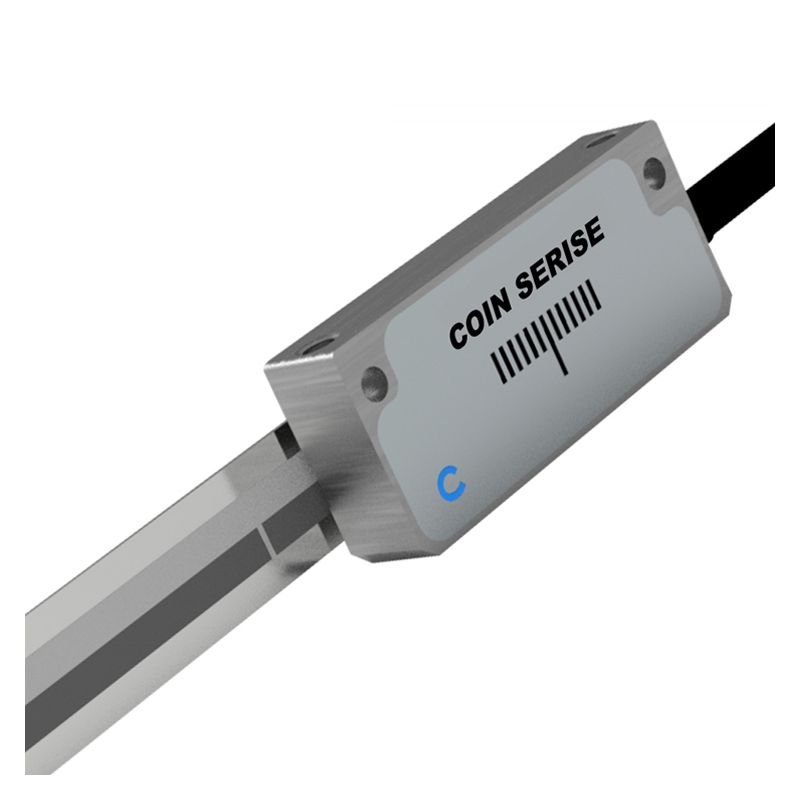

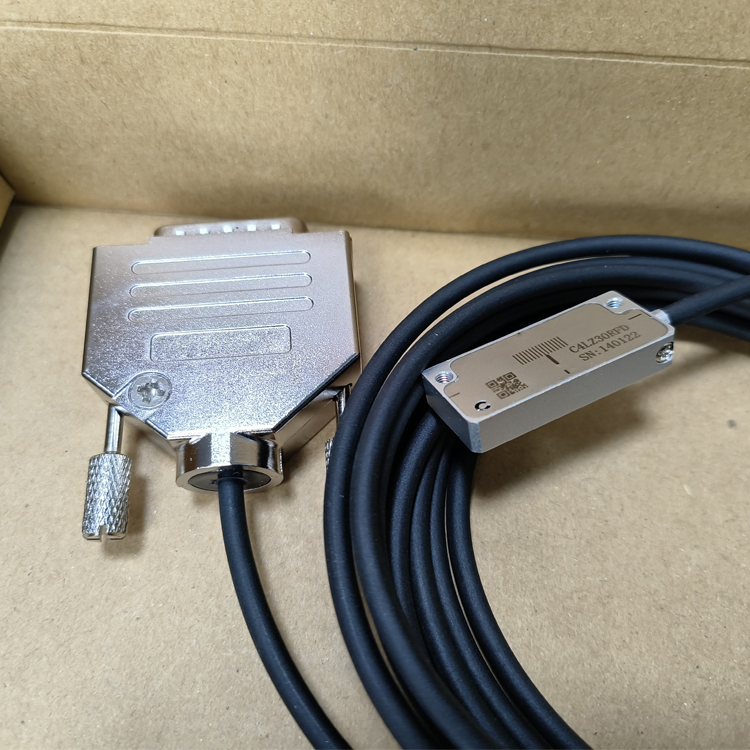

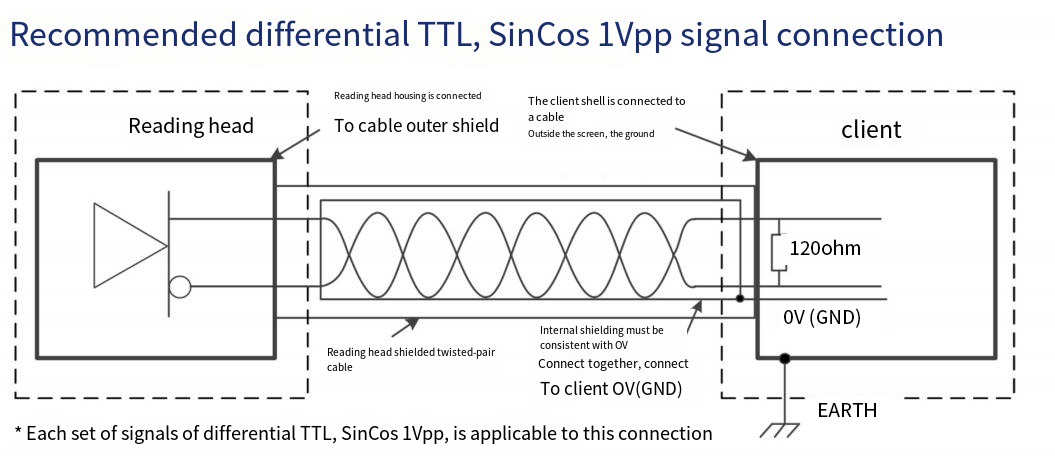

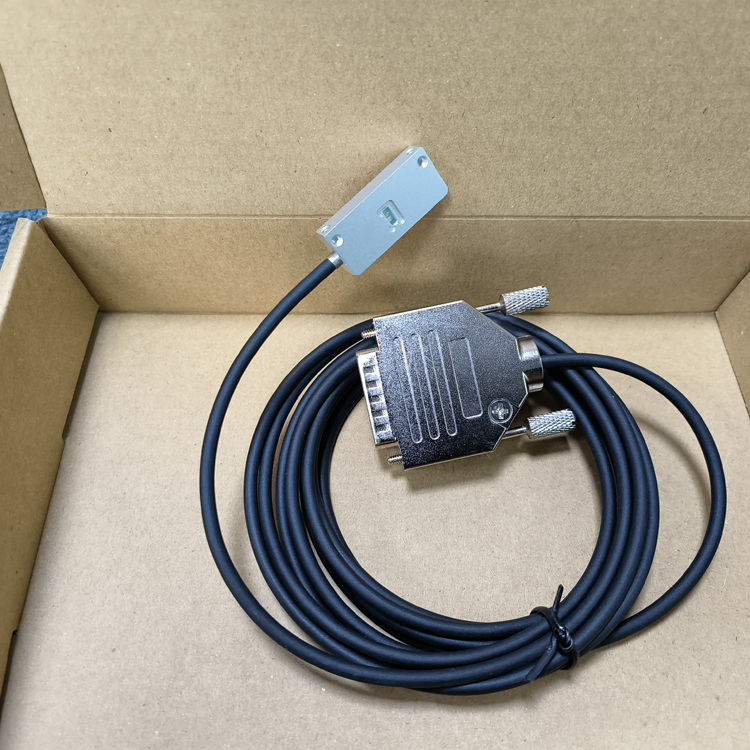

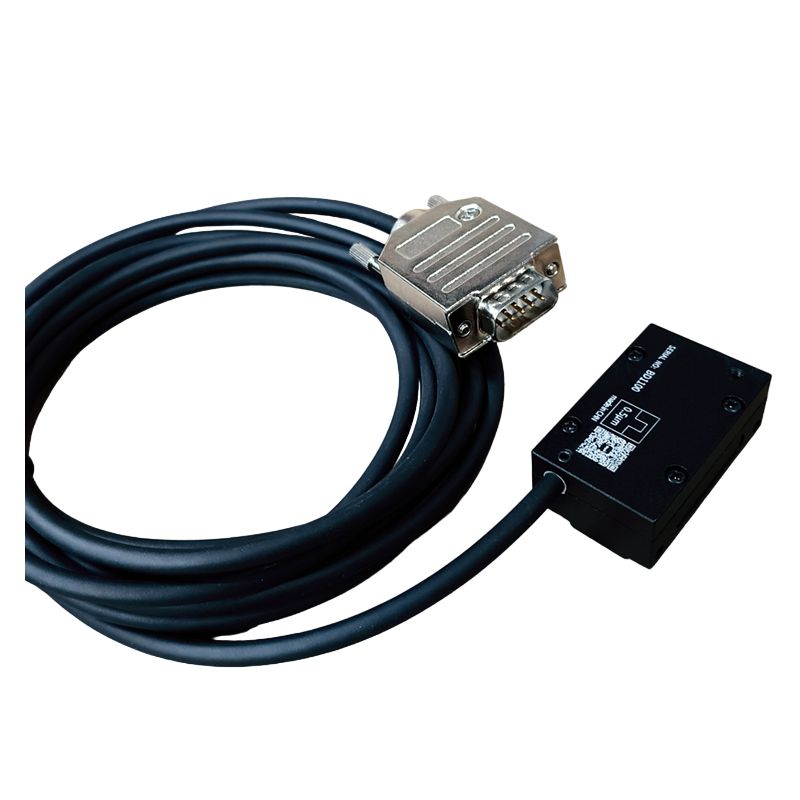

The COIN series reading head provides two types of output signals: differential TTL and SinCos 1Vpp. The electrical connection uses 15 pin or 9-pin plugs, allowing load currents of 30mA and 10mA respectively, with an impedance of 120 ohms.

Output signal

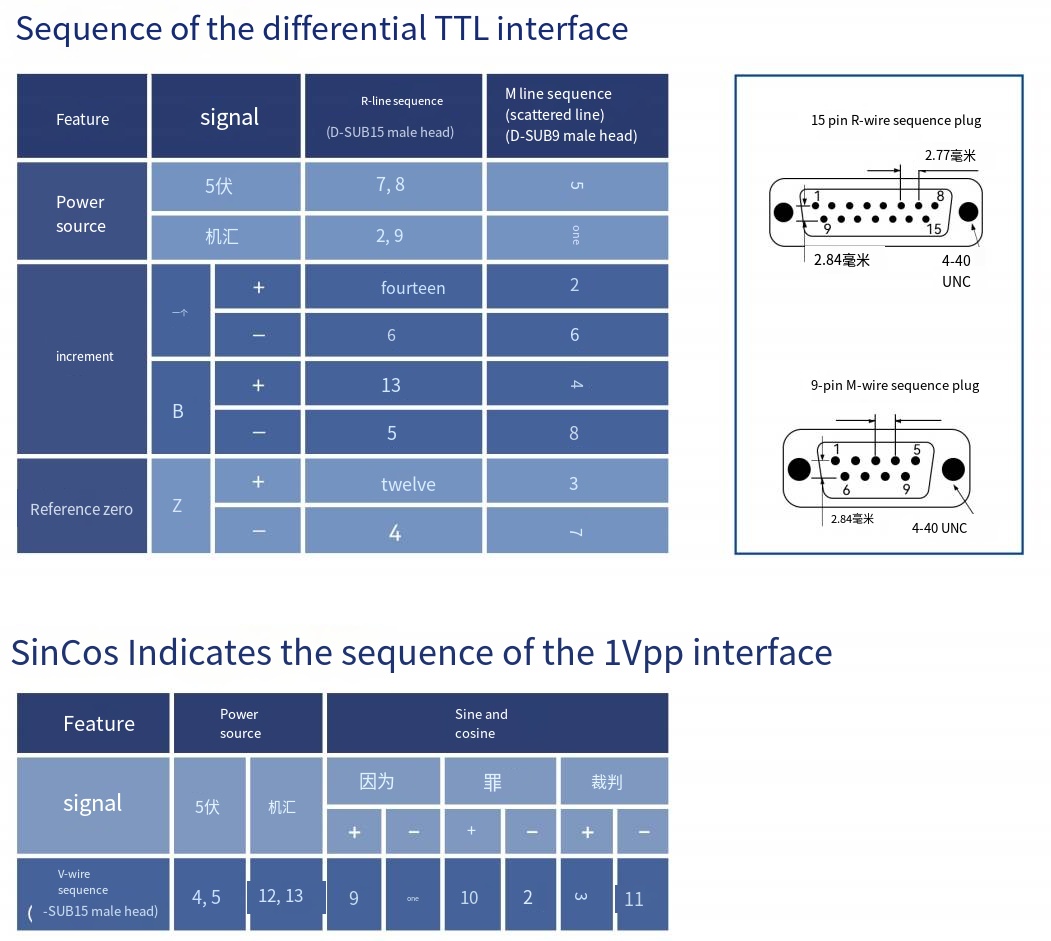

Differential TTL: Provides two differential signals A and B, as well as one differential reference zero signal Z, with a signal level of RS-422 standard.

SinCos 1Vpp: Provides Sin and Cos signals as well as differential reference zero position signal REF, with signal levels ranging from 0.6V to 1.2V.

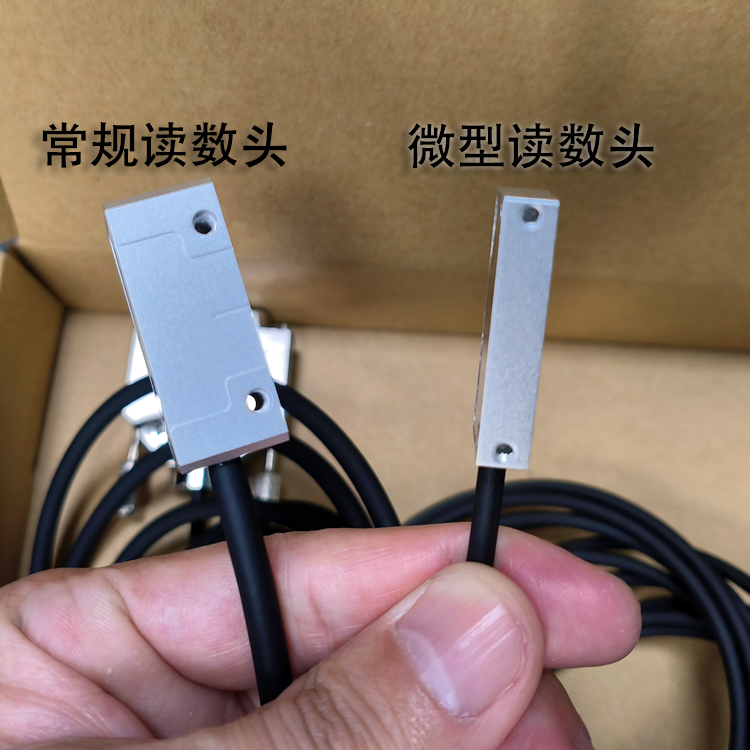

Installation information

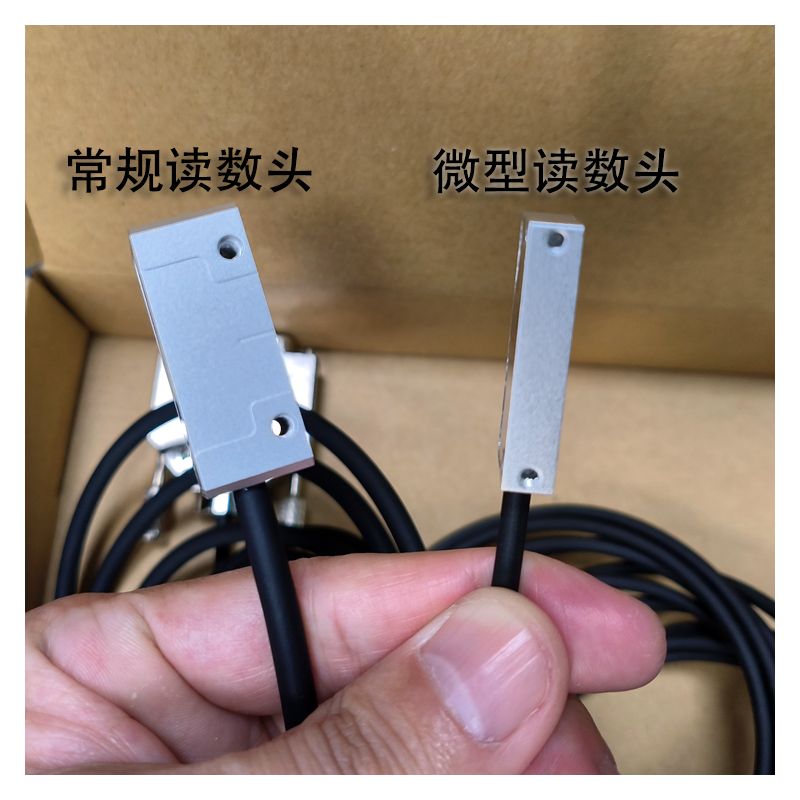

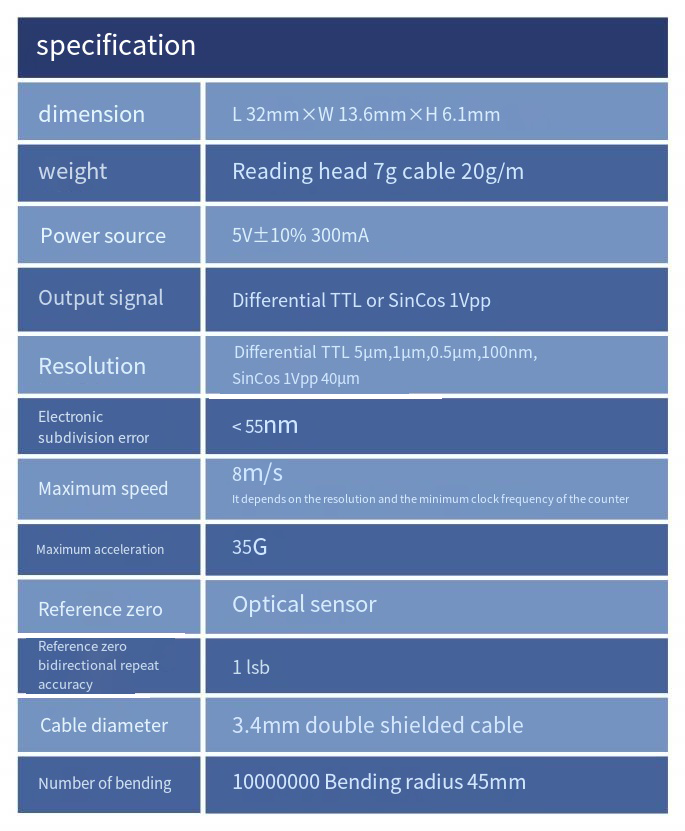

● Size: L32mm × W13.6mm × H6.1mm

Weight: 7g reading head, 20g/m cable

Power supply: 5V ± 10%, 300mA

Output resolution: Differential TTL 5 μ m to 100nm, SinCos 1Vpp 40 μ m

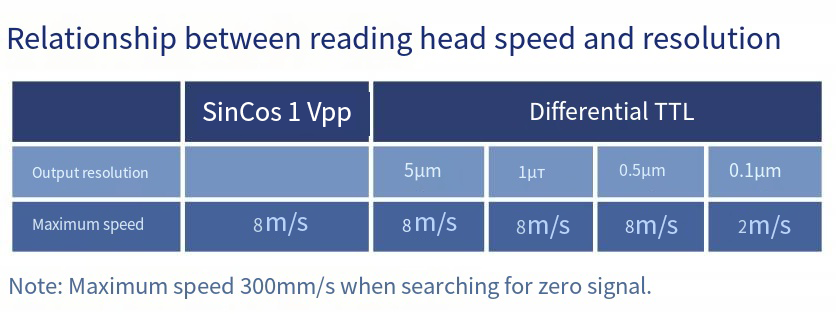

Maximum speed: 8m/s, related to resolution and minimum clock frequency of the counter

Reference zero position: Optical sensor, bidirectional repeatability accuracy of 1LSB.

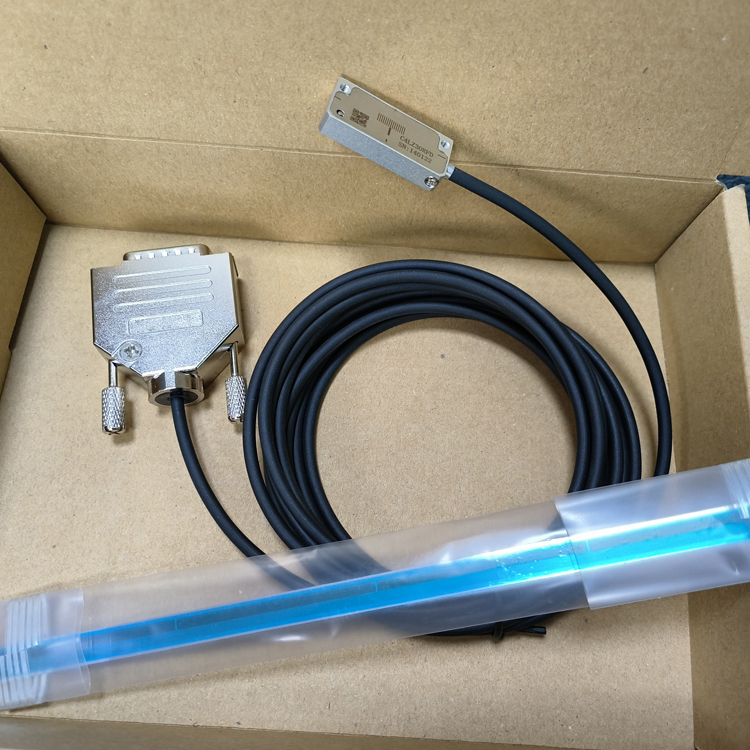

Grid ruler information

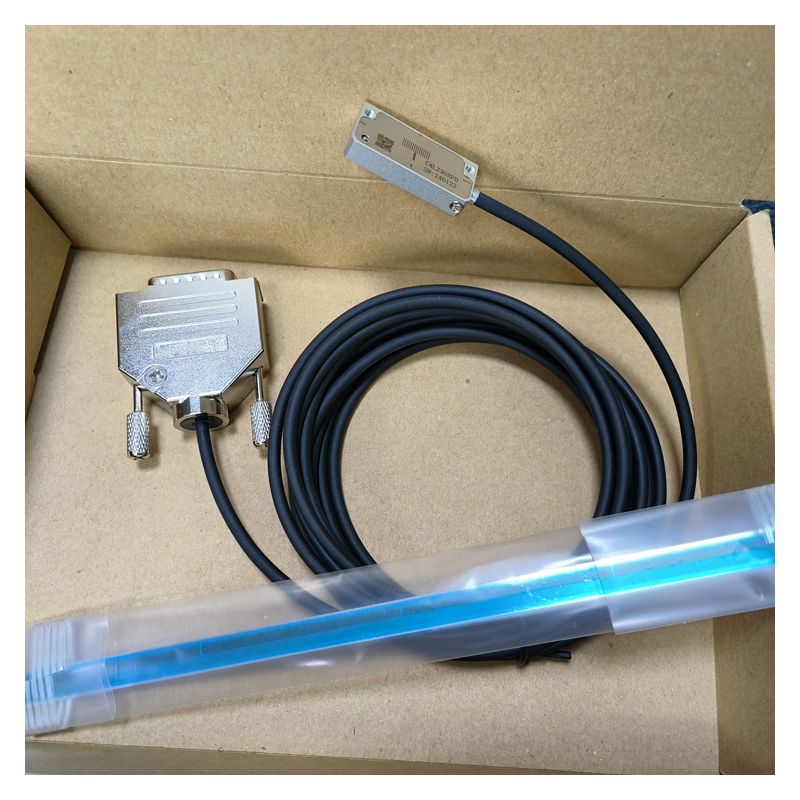

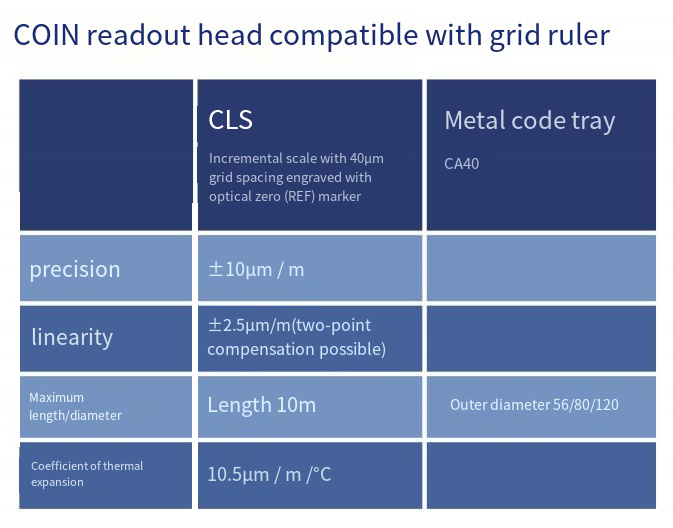

COIN reading head is compatible with CLS grid ruler and CA40 metal encoder, with an accuracy of ± 10 μ m/m, linearity of ± 2.5 μ m/m, maximum length of 10m, and thermal expansion coefficient of 10.5 μ m/m/℃.

Ordering Information

The reading head series number CO4 supports two types: steel grating ruler and code wheel, providing multiple output resolutions and line sequence options. The cable length can be selected from 0.5 meters to 5 meters.

Other characteristics

Anti pollution capability: Adopting large-area single field scanning technology, it has high anti pollution capability.

Calibration function: The built-in EEPROM can store calibration parameters, which need to be calibrated to ensure accuracy.

This product is suitable for application scenarios that require high precision and high dynamic performance, especially in installation environments with limited space.
