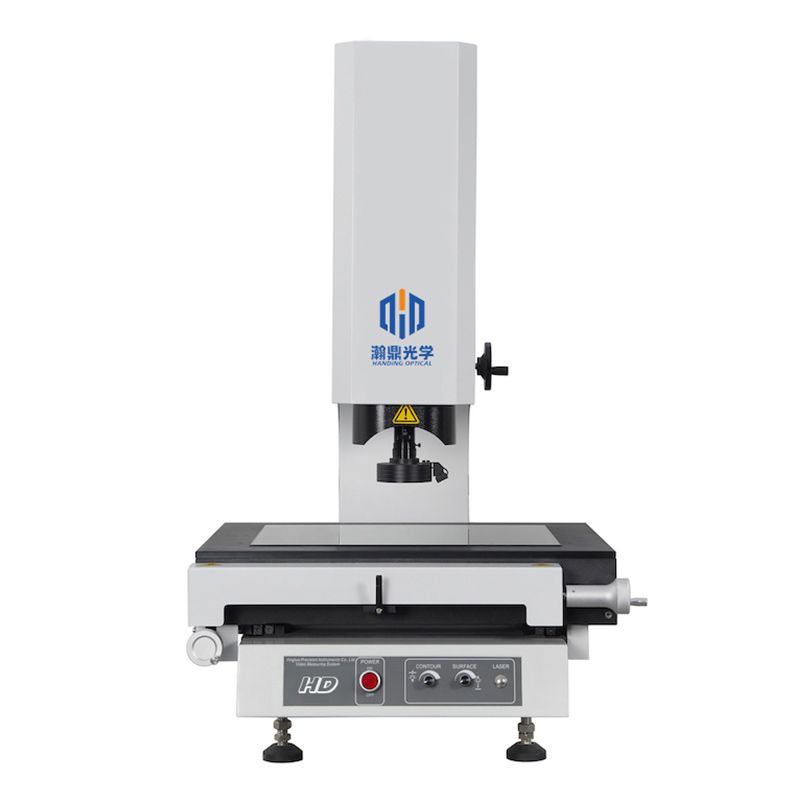

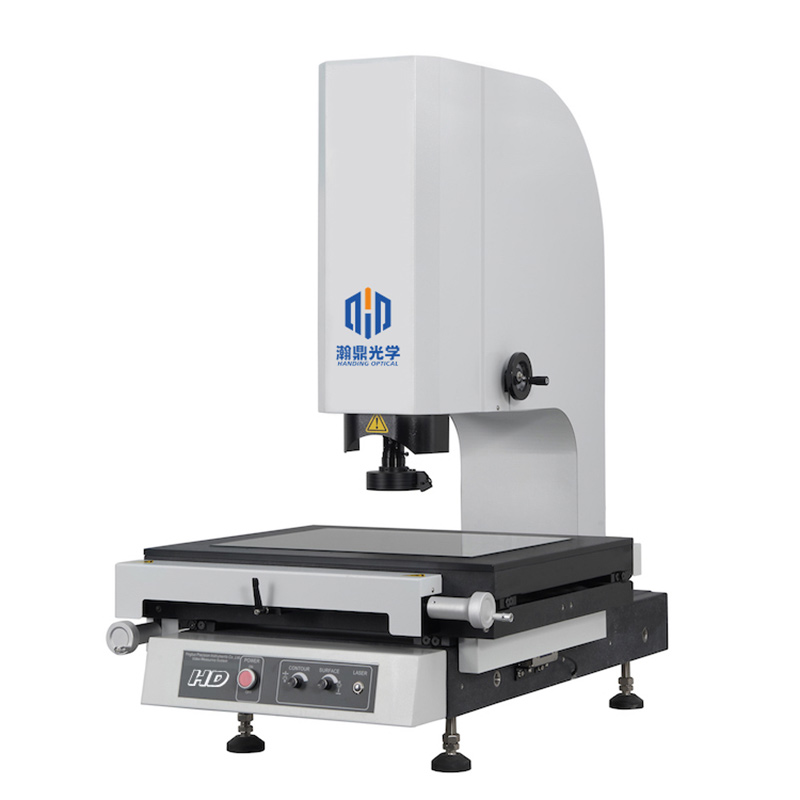

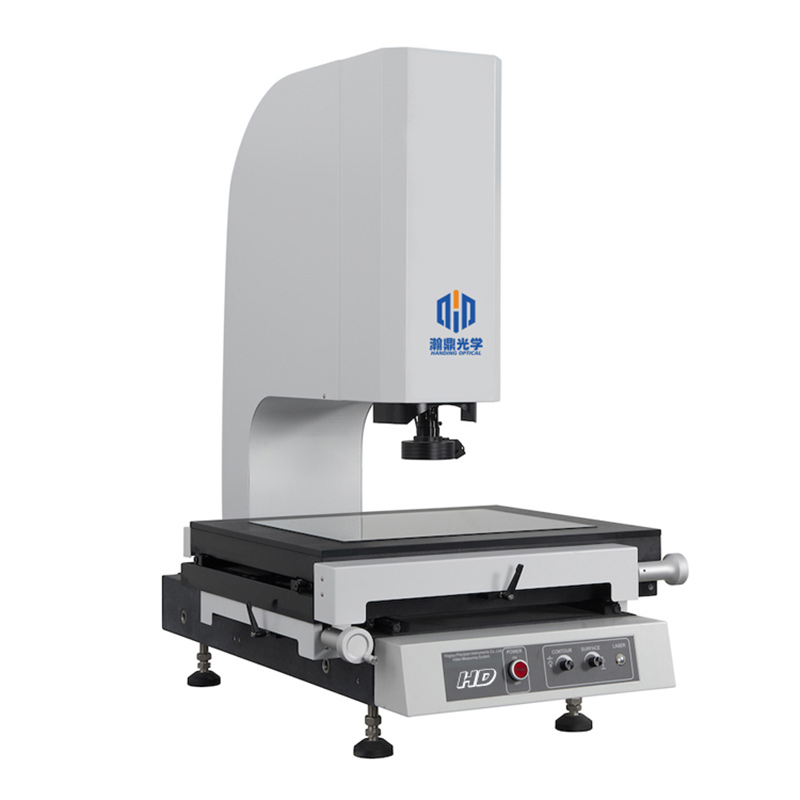

Measurement software (Manual image measurement software)
With manual focus, magnification can be continuously switched.
Complete geometric measurement (multi-point measurement points, lines, circles, arcs, rectangles, grooves, etc., to improve measurement accuracy).
Image automatic edge finding function, coupled with a series of powerful image measurement tools to simplify the measurement process, making the measurement work easier and more efficient.
It supports powerful measurement function and convenient pixel construction function. Users can construct points, lines, circles, arcs, rectangles, slots, distances, intersections, angles, midpoints, midlines, vertical, parallel, widths, manual focusing, manual contour 2D scanning, etc., simply by clicking the graph.
The measurement elements can be translated, copied, rotated, array, mirror and other functions, in a large number of measurements, can shorten the time of program production.
The image data of the measurement process can be stored in SIF file, so that the position and method of measurement are the same for different batches of objects during each measurement, so as to avoid differences in the results of measurement by different users at different times.
For complex workpieces, Dxf, EXCELLON(optional) files can be directly loaded, quickly converted into measurement programs, saving manual teaching time. Multiple Dxf files can be loaded into the system at the same time, and the height of the Z axis of each Dxf file can be set.
According to their own format, the output report file, and according to the measurement time, the same workpiece measurement data classification storage.
The measurement failure or out of step map can be re-measured separately.
Diversified coordinate system setting methods, including coordinate translation, coordinate rotation, redefining new coordinate system, modifying coordinate origin and coordinate alignment, making measurement more convenient.
With the function of curve scanning measurement, the area and circumference of the curve can be quickly calculated.
It can set the shape and position tolerance, tolerance output and discrimination function, and can alarm the unqualified size in the form of color, marking, etc., so that users can judge the data more quickly.
With 3D view and work platform visual port switch function.
The image in the image area can be output as a jpeg file.
The pixel label function makes it faster and more convenient for users to find the measured pixel when measuring a large number of pixels.
Batch pixel processing, select the required pixel, quickly implement program teaching, reset the process, fit the pixel, export data and other functions.
Diversified display methods: language switching, switching of the British unit (mm/inch) Angle conversion (degree/minute/second), the decimal point of the display number can be set by itself, the switch of the coordinate system, etc. .
The software is seamlessly connected with EXCEL, and the measurement data has the functions of graphic printing, data detail report and preview. The data report can be printed and exported to Excel for statistical analysis. At the same time, the corresponding report requirements can be exported according to the customer format report.
The reverse engineering function can be used in the same part of CAD, which can realize the conversion between software and AutoCAD engineering drawings, and directly distinguish the error between the workpiece and the engineering drawings.
The drawing area has personalized editing: point, line, circle, arc, delete, cut, extend, arc Angle, circle tangent point, two lines and radius of the circle center Delete, cut, extend, UNDO/REDO, and can be directly dimensioning and simple CAD drawing functions and modifications in the whole view area.
Humanized file management, measurement data can be stored in Excel, Word, AutoCAD, TXT documents, measurement results can be imported into professional CAD software DXF, directly for development and design.
The software contains built-in data sorting function, which can quickly sort the measured data, make the report easier to sort, can automatically read the specified measurement data in the measurement process, and calculate the maximum, minimum, average and other statistical coefficients.
In the software, customize the image element output report format (such as center coordinates, distance, radius... .. wait.

Instrument operating environment
1. Temperature and humidity:
Temperature: 20-25℃, best: 22℃; Relative humidity: 50%-60%, best: 55%; The maximum temperature change rate of the equipment room is 10℃/ hour. It is recommended to use a humidifier because the climate in the northern region is dry. The climate in the south is humid, it is recommended to use a dehumidifier
2, studio heat calculation:
To maintain the operation of the equipment system in the working room in the optimal temperature and humidity space, the total heat dissipation of the room must be calculated, including the total heat dissipation of the indoor equipment and instruments (ordinary lighting can be ignored).
Body heat dissipation: 600BTY/ hour/person
Studio heat dissipation: 5/ m2
Instrument placement space (L*W*H) : 2M╳2M╳1.25M
3, air dust content:
Keep the equipment room clean. The amount of impurities greater than 0.5MLXPOV in the air is not more than 45,000 per cubic foot. If the air is too dusty, it may cause resource read/write errors and damage to disks or read/write heads in disk drives.
4, the room vibration:
The vibration degree in the equipment room should not be higher than 0.5T. Do not place the machines that generate vibration together. The vibration will loosen the mechanical parts, connectors, and the contact parts of the host panel  and cause abnormal operation of the machine.

Power Supply:
AC220V/50HZ AC110V/60HZ
